Logic Flow

1. Reader read the smart card and send to Controller
2. Controller verify the smart card if it is in correct location and time and store record

Features
1.  Support RS232 and RS485 PC communication or Modem Dial Connection

2.  Optional TCP/IP network communication

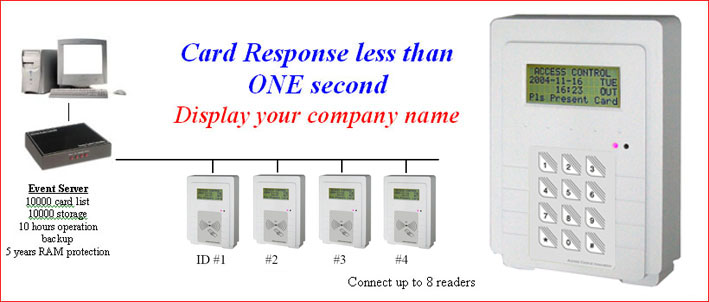

3.  One event server support 8 readers

4.  Connect up to 248 Readers into a single PC
5.  User Define Transaction output format IN ASCII, user can move any variable to any position

     e.g

     01,02,2922379670,05/11/2004,11:56,01

     or

     01 02 05112004 1156 2922379670 01
6.  First line with user company name

7.  Press * for IN, # for OUT, numeric key for job code input

8.  Stores up to 20000 cardholder entries in its memory

9.  Transactions event up to 17000 records, FIFO

10. Backup Battery for up to 3 hours operation (one Event Server + one reader)

11. Battery in-use alert

12. Retains all data for up to 5 years in memory (without power)

12. Provides real time clock (RTC) services to all terminals

13. On-line entry/exit logging and reporting

14. Support 32 time zones

15. Support 60 holidays

16. Support 64 Access Control Group Level

17. Power : 220VAC
18. Event Server Dimension : 205 x 155 x 38 mm
19. Reader Dimension : 162mm x 114mm x 35mm
