Specification

Model Number

¡@

Typical Reading Range :

EM : 6 - 8 cm
Power supply : 12 VDC, 80mA
LED : Tri-State Red / Green
Buzzer control
Water proof
Weight : 150 g
Dimension : 80 x 44 x 17 mm
Cover Color : Black or Milk White

EM Reader Model :
ACI301S : Wiegand 26 / 34 selectable
ACI303S : ACI RS485 format

Typical Reading Range :

EM 8 - 10 cm / Mifare : 5 - 7 cm
Power supply : 12 VDC, 80mA
LED : Tri-State Red / Green
Buzzer control
Water proof
Weight : 200 g
Dimension : 85 x 85 x 20 mm
Same as European Electric box size
Cover Color : Black or Milk White

Mifare S/N Reader Model :
ACI201X : Wiegand 26 / 34 selectable
ACI203X : ACI RS485 format
EM Reader Model :
ACI301X : Wiegand 26 / 34 selectable
ACI303X : ACI RS485 format
Mifare Content Reader Model :

ACI401X : Wiegand 26/34 selectable
ACI403X : ACI RS485 format
Sony CSN Reader Model :

ACI601X : Wiegand 26/34 selectable
ACI603X : ACI RS485 format
ISO15693 CSN Reader Model :
ACI701X : Wiegand 26/34 selectable
ACI703X : ACI RS485 format

Typical Reading Range :

EM 8 - 10 cm / Mifare : 5 - 7 cm
Power supply : 12 VDC, 80mA
LED : Tri-State Red / Green
Buzzer control
Water proof
Weight : 200 g
Dimension : 114 x 74 x 17 mm
Same as US Electric box size
Cover Color : Black or Milk White

Mifare S/N Reader Model :
ACI201 : Wiegand 26 / 34 selectable
ACI203 : ACI RS485 format
EM Reader Model :
ACI301 : Wiegand 26 / 34 selectable
ACI303 : ACI RS485 format
Mifare Content Reader Model :

ACI401 : Wiegand 26/34 selectable
ACI403 : ACI RS485 format
Sony CSN Reader Model :

ACI601 : Wiegand 26/34 selectable
ACI603 : ACI RS485 format
ISO15693 CSN Reader Model :
ACI701 : Wiegand 26/34 selectable
ACI703 : ACI RS485 format

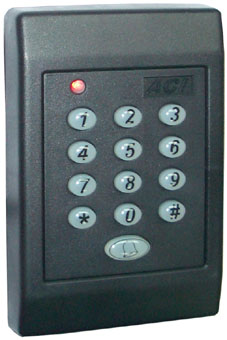

Typical Reading Range :

EM 8 - 10 cm / Mifare : 4 - 5 cm
Power supply : 12 VDC, 80mA
Buzzer control
Water proof
Weight : 250 g
Dimensions: 123 x 87 x 19 mm
Cover Color : Black or Milk White

Mifare S/N Reader Model :
ACI223 : ACI RS485 format
ACI224 : Standalone - 200 cards
EM Reader Model :
ACI323 : ACI RS485 format
ACI324 : Standalone - 200 cards
Sony CSN Reader Model :
ACI623 : ACI RS485 format
ISO15693 CSN Reader Model :
ACI723 : ACI RS485 format
¡@

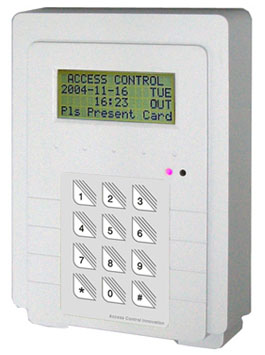

First Line display company name
Typical Reading Range :

EM 8 - 10 cm / Mifare : 4 - 5 cm
Power supply : 12 VDC, 200mA
LED : Red & Green
Buzzer control
Weight : 250 g
Dimensions: 162 x 114 x 35 mm
Cover Color : Black or Milk White

Mifare S/N Reader Model :
ACI233 : ACI RS485 format

EM Reader Model :
ACI333 : ACI RS485 format
HID 125kHz Reader Model :
ACI333H : ACI RS485 format

HID iClass 13.56kHz Reader Model :
ACI333HI : ACI RS485 format
Mifare Content Reader Model :
ACI433 : ACI RS485 format
Sony CSN Reader Model :
ACI633 : ACI RS485 format
ISO15693 CSN Reader Model :
ACI733 : ACI RS485 format

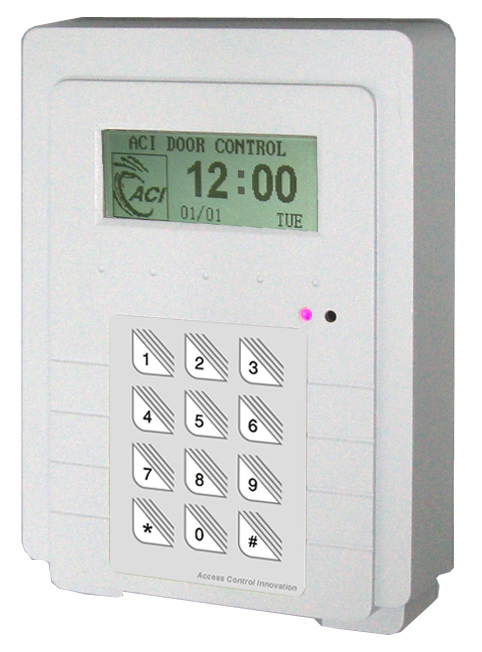

First Line display company name
Left Side logo with 48 x 48 dot graphic
Typical Reading Range : EM 8 - 10 cm / Mifare : 4 - 5 cm
Power supply : 12 VDC, 400mA
LED : Red & Green
Buzzer control
Weight : 250 g
Dimensions: 162 x 114 x 35 mm
Cover Color : Black or Milk White

Mifare S/N Reader Model :
ACI2G3 : ACI RS485 format

EM Reader Model :
ACI3G3 : ACI RS485 format
HID 125kHz Reader Model :
ACI3G3H : ACI RS485 format

HID iClass 13.56kHz Reader Model :
ACI3G3HI : ACI RS485 format
Mifare Content Reader Model :
ACI4G3 : ACI RS485 format
Sony CSN Reader Model :
ACI6G3 : ACI RS485 format
ISO15693 CSN Reader Model :
ACI7G3 : ACI RS485 format

RS232 Desktop Reader
Comm : 9600, N, 8, 1
Reader always in read mode status
Typical Reading Range :

EM 3 - 5 cm / Mifare : 3 - 5 cm
Power supply : 5V VDC, 60mA
Water proof
Weight : 200 g
Dimension : 114 x 74 x 22 mm

Free Com2Keyboard Emulation Driver

Mifare S/N Reader Model :
ACI206 RS232 interface

EM Reader Model :
ACI306 RS232 interface
ACI306U USB interface

¡@

RS232 Desktop Mifare Reader / Writer
With SDK DLL and sample program
Use Philips RC500 chip, full read/write function for Mifare UL and S50 and S70
Control : Green / Red LED and Buzzer
Power supply : 5 VDC from USB port

Weight : 200 g
Dimension : 120 x 89 x 24 mm

Model :
ACI205 RS232 interface

¡@

Long Range EM card reader, reading
range up to 120 cm, need special card
model EMC004
Power : 12V, 400mA
Interface : RS232, Wiegand 26, Wiegand 34
Dimensions: 252 x 252 x 30 mm

EM Reader Model :
ACI310
