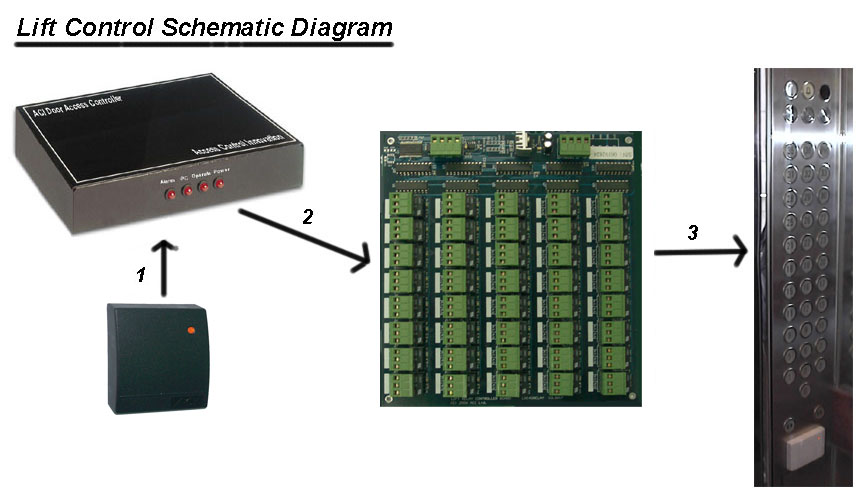

Logic Flow

1. Reader read the smart card and send to Controller

2. Controller verify the smart card if it is in correct location and time then send command to Lift Relay Board

3. Relay Board activate Lift key panel

¡@

Features
1. Support RS232 and RS485 PC communication or Modem dial connection

2. Optional TCP/IP network communication

3. Concentrates up to 16 Lifts Control with (16 Lift Relay Board + Reader)

4. Support 40 lift floors

5. Stores up to 10000 cardholder entries in its memory

6. Transactions event up to 10000 records, FIFO

7. Backup Battery for up to 8 hours operation

8. Battery in-use alert

9. Retains all data for up to 5 years in memory (without power)

10. Provides real time clock (RTC) services to all terminals

11. On-line entry/exit logging and reporting

12. Independent operation; parameters are set via ACI Access Control Manager Software

13. Support Mifare Readers, Proximity Reader or any wiegand type reader

14. Support 32 time zones

15. Support 32 holidays

16. Support 64 Access Control Group Level

17. Support Reader interface such as Wiegand, RS485, Magnetic, Barcode

18. Power : 220VAC

19. Controller Dimension : 205 x 155 x 38 mm

20. Lift Relay Board Dimension : 200 x 215 x 20mm

21. Reader Dimension : 114 x 74 x 17 mm

¡@
