Long Range Smart Card Solution

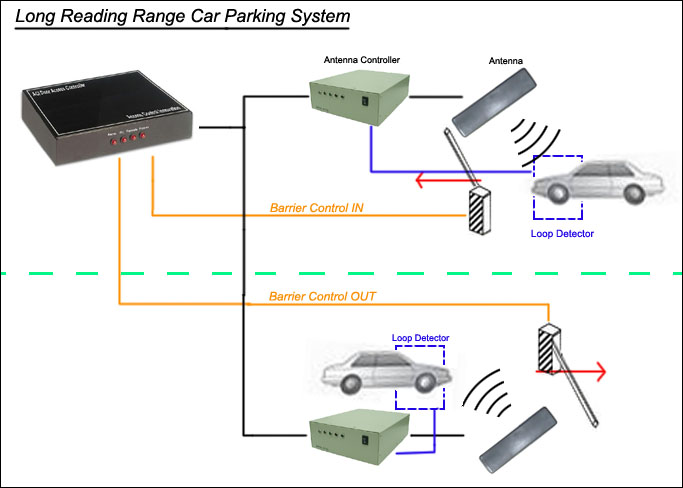

Logic Flow

1. Reader read the smart card

2. If Loop Detector detects a car, Antenna Controller send the card number to Access Controller

3. Controller verify the smart card if it is in correct location and time then activate the Barrier

4. IN and OUT operations work simultaneously

¡@

Features
1. 900MHz Reader support 4-6 meters reading range

2. Access Controller Support RS232 and RS485 PC communication or Modem Dial connection

3. Optional TCP/IP network communication from PC to Access Controller

4. Support Group Anti Pass Back (eg. 3 cars with 2 parking spaces)

5. Concentrates up to 8 Entrances and 8 Exits Barrier Control

6. Stores up to 20000 cardholder entries in its memory

7. Transactions event up to 17000 records, FIFO

8. Retains all data for up to 10 years in memory (without power)

9. Provides real time clock (RTC) services to all terminals

10. On-line entry/exit logging and reporting

11. Independent operation; parameters are set via ACI Access Control Manager Software

12. Support Mifare Readers, Proximity Reader or any wiegand type reader

13. Support 32 time zones

14. Support 60 holidays

15. Support 64 Access Control Group Level

16. Support Reader interface such as Wiegand, RS485, Magnetic, Barcode

17. Power : 220VAC

18. Controller Dimension : 205 x 155 x 38 mm

19. Antenna Controller Dimension : 313 x 228 x 93 mm
20. Antenna Dimension : 650 x 160 x 50 mm

¡@
